Deployment Architecture

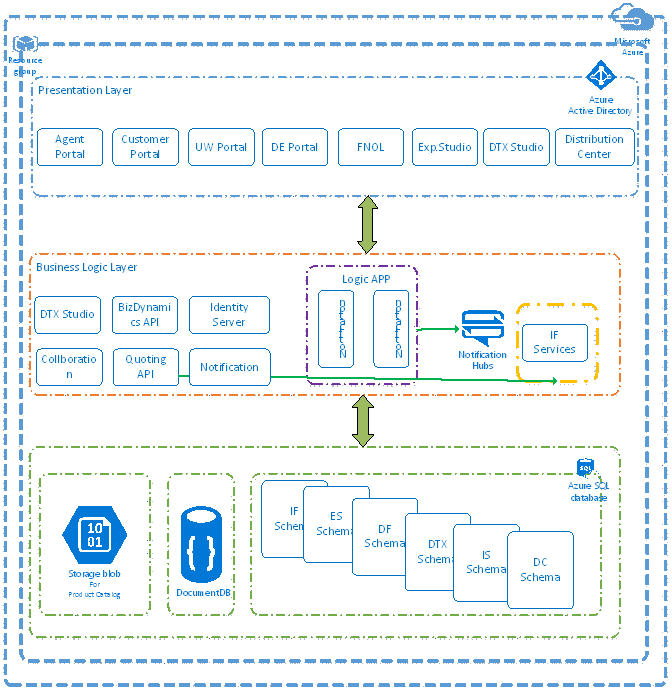

The diagram shows deployment of BizDynamics using Azure Automation. Azure Automation is a combination of ARM (Azure Resource Manager) template and PowerShell commands.

Microsoft Azure Automation helps users to automate the tasks that are commonly performed in a cloud and enterprise environment. Main tasks involved are Azure Infrastructure creation and deploying BizDynamic components based on selected components.

After completion of auto-deployment activities, a sanity check is performed. Post sanity check, the application will be accessible.

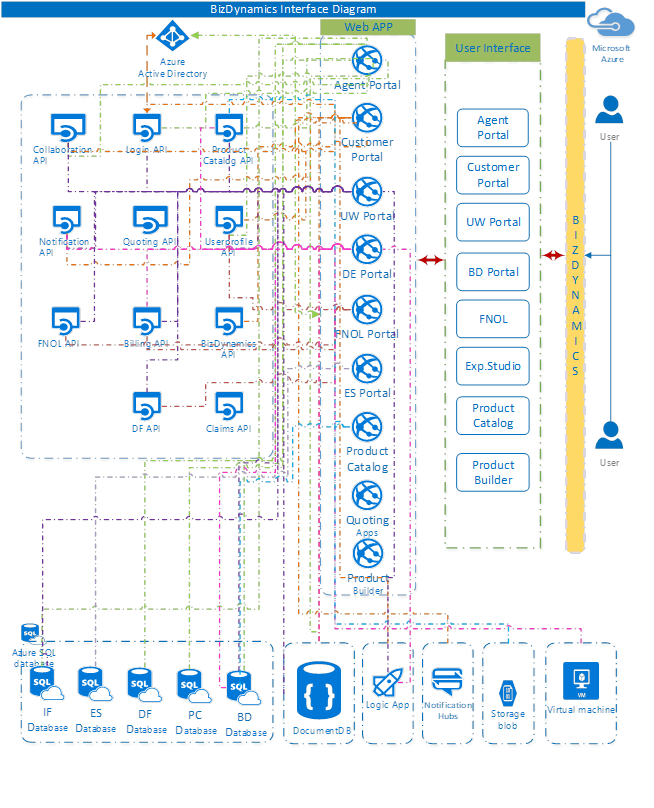

Also you can see the pictorial representation of BizDynamics Interface.
